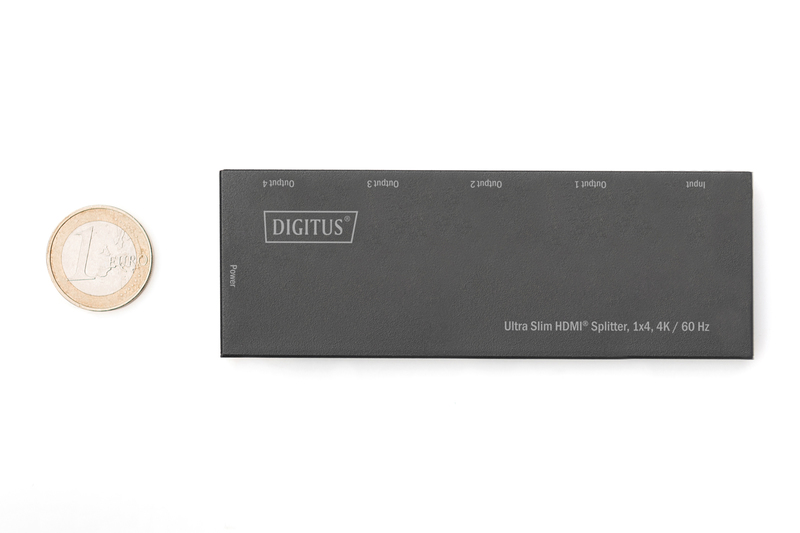

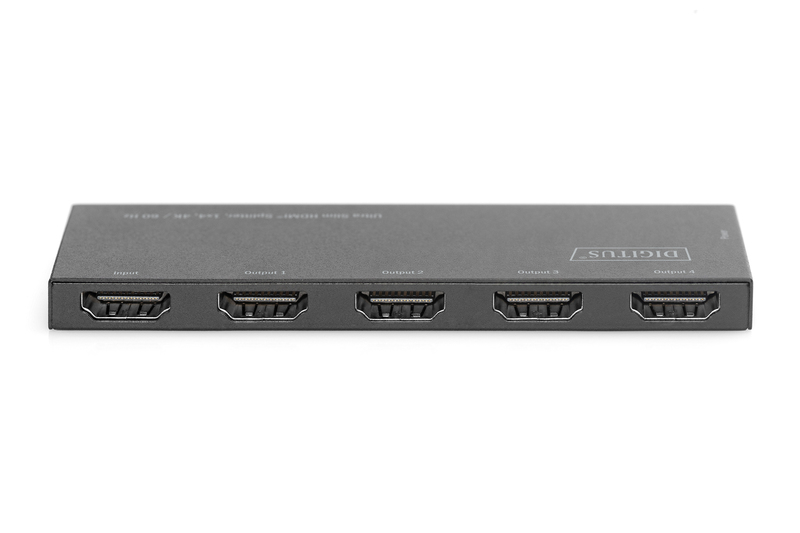

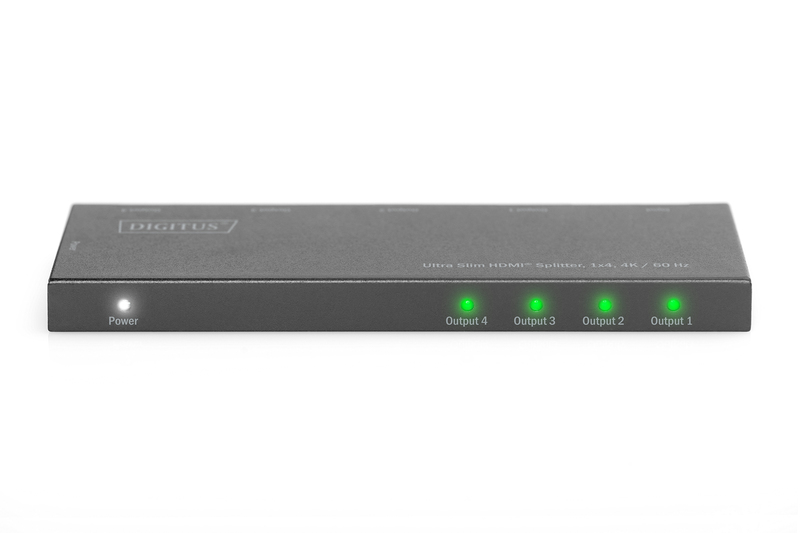

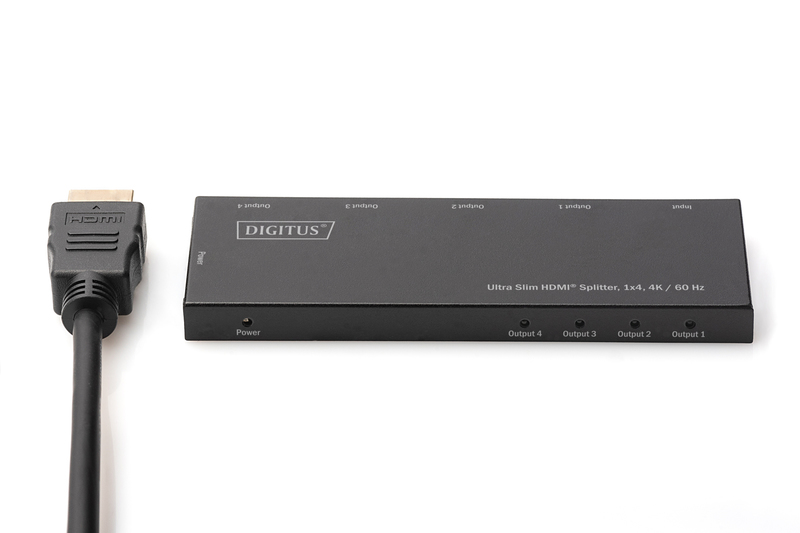

DIGITUS Ultra Slim HDMI® splitter, 1x4, 4K / 60 Hz Topseller

DS-45323
EAN 4016032465065

Print version
  • Description

    Ultra Slim HDMI Splitter, 1x4, 4K/60Hz HDR, HDCP 2.2, 18 Gbps, Micro USB powered

    Splits an HDMI signal on four displays - supports UHD 4K / 60 Hz with HDR

    • Resolutions of up to 4K / 60 Hz (4:4:4)
    • Full 18 Gbps - for a crystal clear display of UHD contents
    • Supports HDR & HDCP 2.2

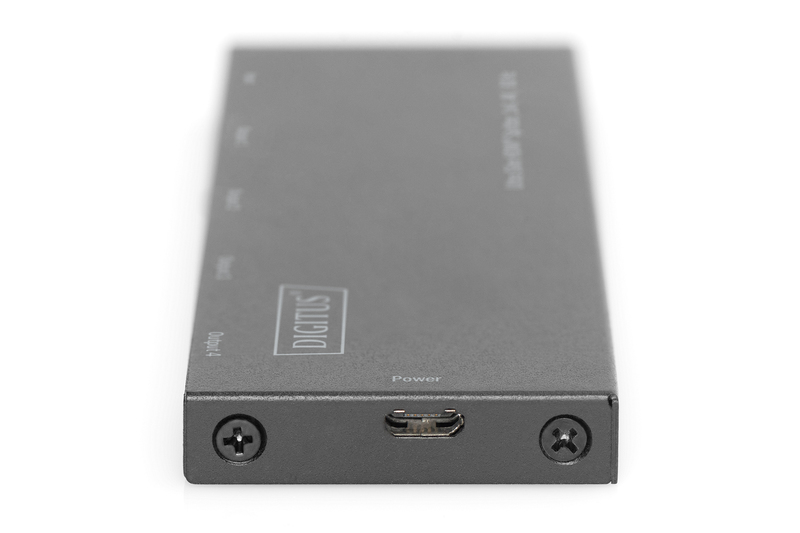

    • Power supply via Micro USB (charging adapter, TV, notebook)
    • Cascading of up to 8 splitters in a row
    • Ultra slim design
    • Compatible with the latest Ultra High Definition (UHD) standards
    • Protection from Electrostatic Discharges (ESD)
    • Plug and Play

    The DIGITUS® high-performing splitter splits your HDMI device’s audio and video signals on up to four screens, TVs or projectors with a resolution of UHD 4K / 60 Hz. No more tedious reconnecting your cables. Additionally, HDR, HDCP 2.2 and 3D are supported - also a total width of 18 Gbps for fluent playback in excellent quality. The HDMI® splitter can be supplied via an existing USB port located on the TV device or, alternatively, via a USB charging adapter using electricity. You can cascade several splitters up to 8 levels.

    Technical Details

    • Supports HDMI® resolutions of up to 4K / 60 Hz (4096 x 2160p)
    • Data transfer rate: 18 Gbps (6 Gbps per channel)
    • Supports: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
    • Supports 36bit Deep Color (12 Gbps per channel)
    • Supports HDCP 2.2 / 1.4
    • Supports: 3D
    • Supports: HDR (High Dynamic Range)
    • Supports cascading of up to 8 splitters
    • Operating temperature: 0°C ~ 45°C
    • Operating humidity: 10% - 85% RH (non-condensing)
    • Power consumption: 2.5 W (5 V / 0.5 A)
    • ESD protection: +/- 8 kV air insulation discharge, +/- 4 kV contact discharge
    • Housing: Metal
    • Color: Black
    • Weight: 80 g
    • Dimensions: L 11.2 x W 4 x H 0.9 cm
    • Video connection ports: HDMI
    • Number of ports: 4
    • HDTV Resolution max.: 4096 x 2160 Pixel, 60Hz
    • HDTV Standard: Ultra HD 4K
    • Signal input: HDMI
    • Signal output: HDMI

    Package content

    • Ultra Slim HDMI Splitter, 1x4, 4K / 60 Hz
    • USB A on Micro USB connection cable (power supply)
    • User manual
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton207,0032,0052,0017,5029120,00
    Packaging Unit Inside10,3511,0015,002,50412,50
    Packaging Unit Single10,3511,0015,002,50412,50
    Net single without Packaging10,2511,0015,002,50412,50
