DIGITUS Variable Notebook Stand with integrated USB-C™ Docking Station, 8 Port Topseller

DA-90408
EAN 4016032474616

Print version
  • Description

    USB-C Dock (8-Port) with Notebook Riser silver/white

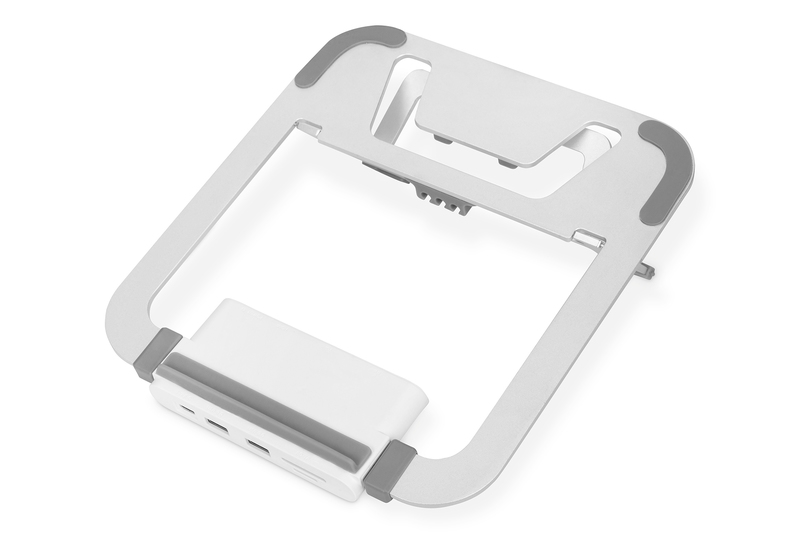

    Notebook stand with integrated docking station – unites ergonomic design and connectivity in a portable solution

    • Extends your notebook by 8 additional interfaces for video, data, power & Ethernet
    • Can be individually adjusted to your height, can be set to 4 different angles of inclination (15°-30°)
    • Compact and foldable design – Ideal for travel, home & office
    • Suitable for 10"-15" notebooks
    • 2 x Video connections: 1 x UHD 4K HDMI® connection / 1 x Full HD VGA connection
    • 2 x USB-C™ connections: 1 x Host for connection with notebook / 1 x PD 3.0 (Power Delivery) USB-C™ connection to quickly charge your notebook
    • 1 x RJ45 Gigabit Ethernet interface - Connects your notebook to the Internet / LAN
    • 2 x USB 3.0 connections (SuperSpeed, 5 Gbps) – Data transmission / Charging of mobile devices (5 V / 0.9 A)
    • Slim frame design for optimal notebook cooling

    The adjustable notebook stand from DIGITUS® combines ergonomic design and connectivity in one convenient unit. You can easily adjust the angle of inclination to your height in 4 levels. Your notebook can be connected via the USB-C™ port, allowing you to access all interfaces of the integrated docking station. On the front side there is a fully functional USB-C™ port, two USB A ports (USB 3.0) and a card reader for SD and microSD cards. On the back side it is possible to connect two monitors (HDMI + VGA), an RJ45 network cable (LAN) as well as a USB-C™ power adapter that can deliver charging power (Power Delivery) for devices such as a connected notebook. Use the advantages of ergonomic design and connectivity in a single unit with the DIGITUS® notebook stand with integrated docking station.

    Technical Details

    • 1 x HDMI port: 4K / 30 Hz
    • 1 x VGA connection: 1080p
    • 1 x RJ45 connection: Gigabit Ethernet interface with 10/100/1000 Mbps bandwidth (LAN)
    • 1 x USB-C™ connection: USB 3.1 Gen 1
    • 1 x USB-C™ connection: Power Delivery (85 W max.)
    • 2 x USB A connections: USB 3.0, SuperSpeed, 5 Gbps (5 V / 0.9 A)
    • 1 x Card reader: SD & microSD card slot, 90 MB/s max.
    • HDMI version: 1.4
    • HDMI resolution: 4K - 1 monitor / 1080p - 2 monitors
    • VGA resolution: Full HD (1080p)
    • Simultaneous use of HDMI + VGA = Clone desktop
    • Individual use of HDMI or VGA = Extend / Clone desktop
    • Compatible with notebooks, tablets from many manufacturers
    • Suitable for notebooks with a screen diagonal of 10" - 15"
    • Slim frame design for optimal notebook cooling
    • Adjustable angle of inclination: 15°, 20°, 25°, 30°
    • Frame material: Aluminum
    • Dimensions: W 25.7 x D 23 x H 26.5 cm
    • Weight: 445 g
    • Manufacturer’s notice:
    • Not all USB-C™ ports support all the features of the USB Type-C™ standard. Make sure that your notebook’s USB-C™ port supports the DisplayPort Alternate Mode (DP Alt Mode) as well as USB Power Delivery (PD).
    • An optional power adapter is required in order to use the charging function via Power Delivery.
    • Style: Notebook Riser

    Package content

    • 1 x Notebook Stand with Integrated Docking Station, 8-Port
    • 1 x QIG
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton2014,5038,5053,1030,6062557,10
    Packaging Unit Inside10,7327,7025,403,302321,81
    Packaging Unit Single10,7328,0025,503,602570,40
    Net single without Packaging10,5528,0025,503,602570,40
  • Downloads

    Quick instructions guide
