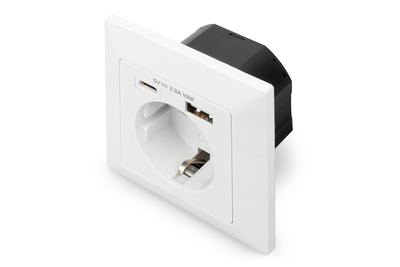

DIGITUS Safety Plug for Flush Mounting with 1 x USB Type-C™, 1 x USB A

DA-70615
EAN 4016032443223

Print version
  • Description

    Wall Outlet 1x Safety Outlet,1x USB,1x Type C 5 V 2.8 A, Input: AC 250V 50Hz, RAL 9003

    1 x USB Type-C™ connection + 1 x USB A connection for charging smartphones or tablets

    • The USB socket features, apart from a standard safety socket with integrated shutters for increased contact protection, an integrated power adapter with two USB charging ports for parallel charging of smartphones or tablets
    • Overvoltage protection and short circuit protection is built into the safety socket, which secures the USB Type A and USB Type-C charging jacks and the connected smartphones or tablets
    • The charging function of the wall socket supports up to 14 W (5 V / 2.8 A) both on the Type C and the USB-A interface - The maximum supported power output across all ports is 2.8 A
    • Due to the installation depth of 38 mm, a standard commercial flush socket can be used for flush mounting - The socket is suitable for use indoors
    • The dimensions of the socket panel (without frame) in 55 x 55 m have limited design capability with other manufacturers – Incl. frame, the dimensions are 8.5 x 8.5 cm

    Charge your smartphone at any socket! With the DIGITUS® safety plug socket you can even charge 2 smartphones at the same time. Charge one USB-C™ or USB A device with up to 14 W (5 V / 2.8 A). For example, with 2.8 A available charging current you can simultaneously charge your smartphone and tablet. Protect you and your family by the integrated shutters in the safety socket and inbuilt electronic short circuit and overload protection in the USB ports. Upgrade your existing electrical installations and enjoy being able to charge your USB devices at any time, directly from the socket.

    Technical Details

    • Integrated shutters in the socket for increased protection against accidental contact
    • 1 x USB Type-C™, 1 x USB A port,
    • Output voltage: 5 VDC (USB)
    • Output voltage: 250 VAC (safety plug socket)
    • Mounting: Flush mount
    • Total output current: max. 2.8 A (USB-C™ + USB A)
    • Installation depth: 38 mm
    • Safety: Secured with electronic short circuit and overload protection (USB)
    • Intelligent parallel usage of all connections (USB up to 3.4 A)
    • Color: Signal white RAL 9003

    Package content

    • Safety plug for flush mounting with 1 x USB Type-C™, 1 x USB A port
    • Installation instructions
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton609,3631,0024,0021,0015624,00
    Packaging Unit Inside304,6829,0010,0018,005220,00
    Packaging Unit Single10,169,006,0012,00648,00
    Net single without Packaging10,139,006,0012,00648,00
  • Downloads

    Manual
