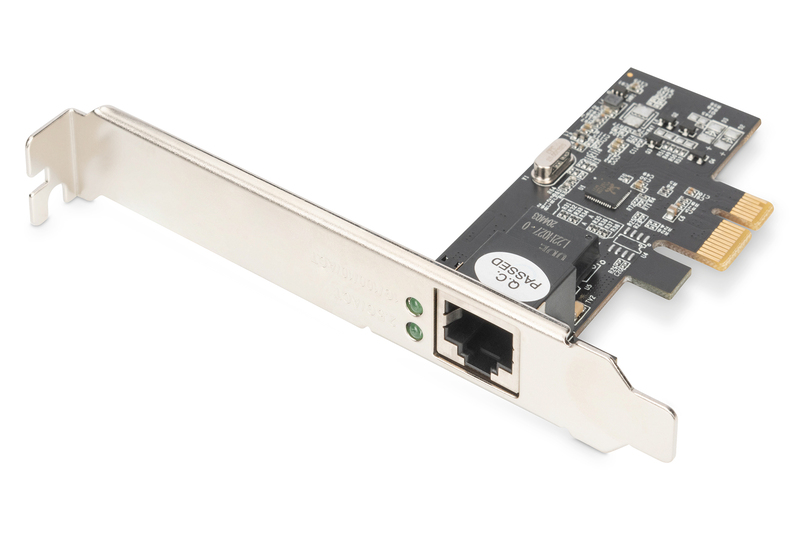

DIGITUS Gigabit Ethernet PCI Express Network Card 2.5G (4-Speed)

DN-10135
EAN 4016032473978

Print version
  • Description

    2,5 Gigabit Ethernet PCI Express Card 2.5G Ethernet NIC (CHIPSET:RTL8125B)

    Fast multi-gigabit network connection with up to 2.5 Mbps for your PCI express slot

    • Gigabit data transmission with up to 2500 Mbps (2.5G)
    • Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3ab
    • Ideal for streaming and gaming applications with high data rates
    • Supports IEEE802.3x full-duplex flow control
    • Supports IEEE802.1q VLAN tagging
    • Supports Wake-on-LAN
    • Additional low-profile slot bracket for use in narrow housings

    This PCIe Gigabit Network Card from DIGITUS® offers you the highest performance for network applications that achieve high data rates with your 10/100/1000/2500 BASE-T ethernet controller. This is ideal for streaming applications with high resolution. Via LAN interfaces (RJ45), it supports the IEEE802.3u specification for fast ethernet and the IEEE802.3ab specification for gigabit ethernet with up to 2.5 Gbps. IEEE802.3x full-duplex flow control is also supported, as well as Wake-on-LAN. The card can be used for slots at full installation height, a low-profile slot bracket is also provided in the scope of delivery for use at half installation height.

    Technical Details

    • Connection: 1 x Gigabit LAN (RJ45)
    • Supports 10/100/1000/2500 Mbps networks with automatic recognition
    • Conforms with IEEE802.3, IEEE802.3u & IEEE802.3ab specification
    • Supports IEEE802.3x full-duplex flow control
    • Chipset: Realtek RTL8125B - 2500Base-T Ethernet Controller
    • Supports auto MDI/MDIX crossover
    • Supports auto MDI/MDIX crossover
    • Compatible with PCI Express Specification 2.1
    • Supports Wake-on-LAN (WOL)
    • Supports IEEE802.1q VLAN tagging
    • LED operating display: Active / data traffic / 2.5G data traffic
    • Supported operating systems: Windows 7/8/10 (32/64Bit), Windows Server 2008 R2/2012 R2/2016, Linux 4 and higher
    • Operating temperature: 5 °C to +50 °C
    • Operating humidity: 20% - 80%
    • Dimensions (WxDxH): 12 x 9.8 x 2.2 cm
    • Weight: 35.2 g

    Package content

    • 1 x Gigabit Ethernet PCI Express Network Card 2.5G
    • 1 x Low-profile slot bracket
    • 1 x QIG
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton202,0030,0046,0023,0031740,00
    Packaging Unit Inside10,100,000,000,000,00
    Packaging Unit Single10,1014,8019,003,00843,60
    Net single without Packaging10,0214,8019,003,00843,60
